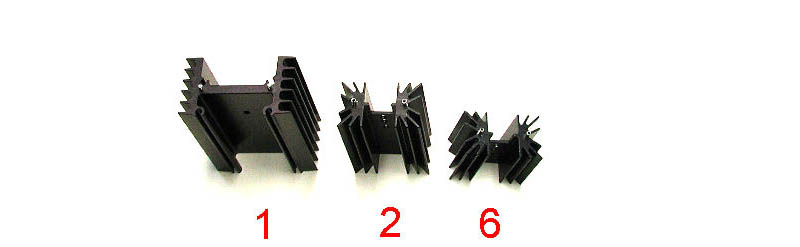

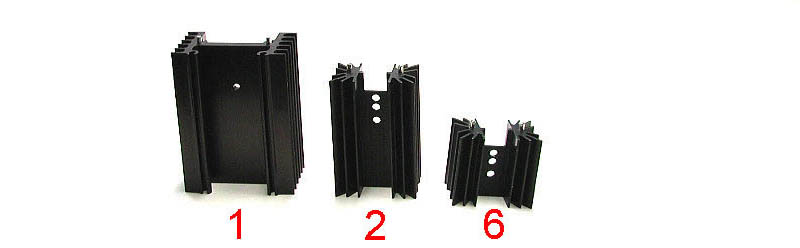

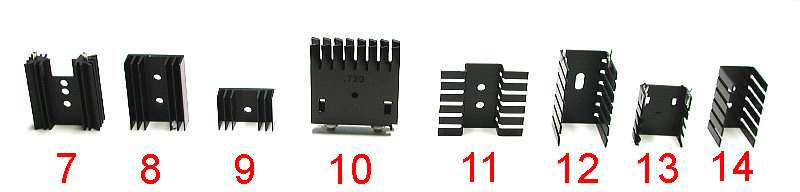

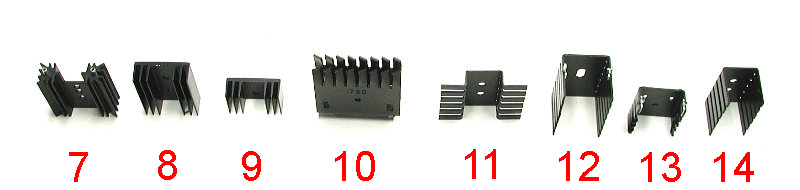

| This is a collection of mainly Aavid TO-220 heatsinks. Where the part number is shown, search for that number at either Digi-Key or Mouser Electronics for more details. Types 1-7, 12, and 13 all have two solderable pins that are designed to fit on a PC Board. These are shown upside down. |
| Photo Number | Source | Part Number | Height | Quantity On Hand | Typical Retail Price | Your Price Each |
|---|---|---|---|---|---|---|
| 1 | ??? | ??? | 3.0" 77mm | 1 | $10.00 | $ 5.00 |
| 2 | Digi-Key | 294-1032-ND | 2.5" 63mm | 2 | 9.37 | 4.68 |
| 6 | Digi-Key | 294-1029-ND | 1.5" 38mm | 2 | 8.44 | 4.22 |
| 7 | Digi-Key | 294-1024-ND | 1.5" 38mm | 2 | 6.93 | 3.46 |
| 8 | Digi-Key | 294-1080-ND | 1.5" 38mm | 2 | 3.32 | 1.66 |
| 9 | Digi-Key | 294-1034-ND | 0.75" 18mm | 10 | 3.73 | 1.86 |
| 10 | Mouser | 532-530102B15 | 1.75" 44mm | 2 | 1.01 | 0.50 |
| 11 | Mouser | 532-507222B00 | 1.45" 37mm | 2 | 0.45 | 0.22 |
| 12 | Mouser | 532-590302B36 | 1.7" 43mm | 2 | 0.71 | 0.35 |
| 13 | Digi-Key | HS232-ND | 1.125" 30mm | 2 | 0.80 | 0.40 |
| 14 | ??? | ??? | 1.4" 32mm | 4 | 0.80 | 0.40 |
